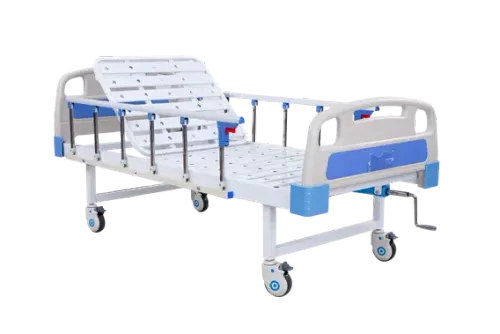

Semi Fowler ABS Hospital Bed Premium Model

A Semi Fowler Hospital Bed is a specialized medical bed designed to enhance patient comfort and care by allowing adjustable positioning, particularly elevating the head section. This design is beneficial for patients requiring specific postural adjustments for medical reasons or comfort.

🛠️ Key Features & Specifications

📏 Dimensions & Structure

Overall Size: Approximately 2030–2110 mm (Length) × 900–950 mm (Width) × 500–600 mm (Height)

Frame Material: Constructed from mild steel (MS) or cold-rolled steel, often epoxy or powder-coated for durability and corrosion resistance

Bed Platform: Two-section top made of perforated MS sheets to enhance ventilation and reduce moisture buildup

🔄 Adjustability

Backrest Tilt: Adjustable from 0° to approximately 70°, facilitating semi-Fowler positioning, which aids in respiratory function and comfort

Mechanism: Manual adjustment via a smooth crank mechanism; some models offer electric adjustments for ease of use

🛏️ Head & Foot Panels

Materials: Options include tubular steel, laminated panels, or ABS plastic, often detachable for maintenance and cleaning

🛡️ Safety Features

Side Rails: Available in stainless steel, aluminum, or ABS, these rails are collapsible and provide patient safety during movement

Load Capacity: Designed to support patient weights up to 125–200 kg, ensuring stability and safety

🧳 Mobility

Castors: Equipped with heavy-duty wheels, typically 100–125 mm in diameter, with locking mechanisms to ensure stability when stationary
